The automation tools used for the migration from NSX-V to NSX-T will cause a few changes to the formatting of the rules on your edge:
- Firewall Rules
- NAT Rules
- Shared networks

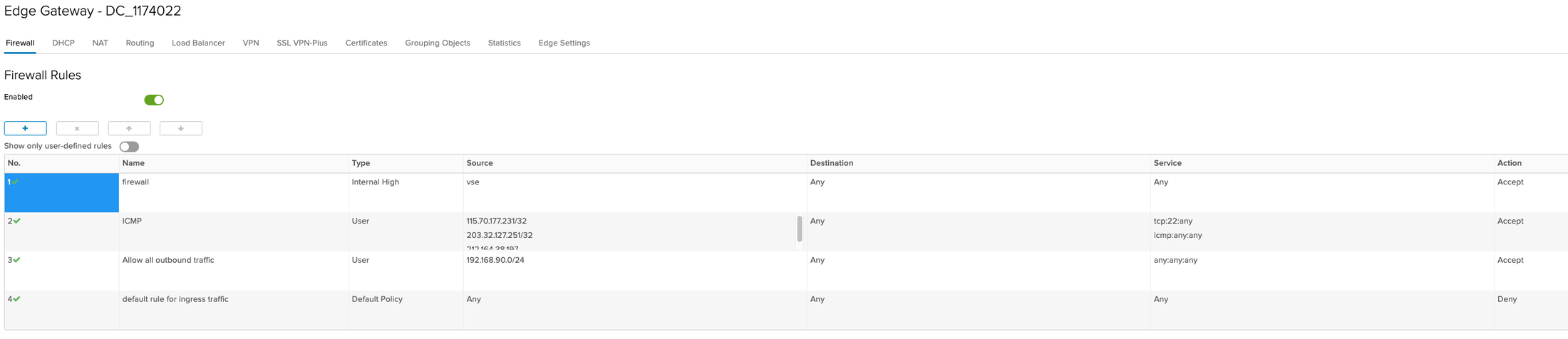

Before : NSX-V Edge Firewall

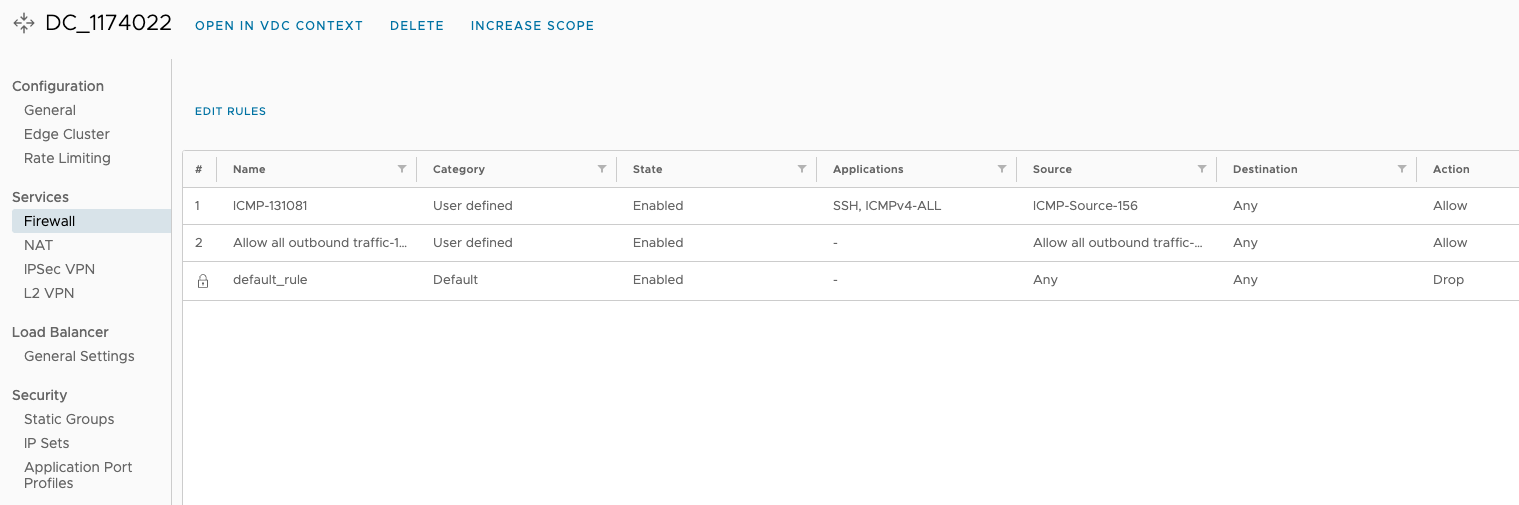

After : NSX-T Edge Firewall

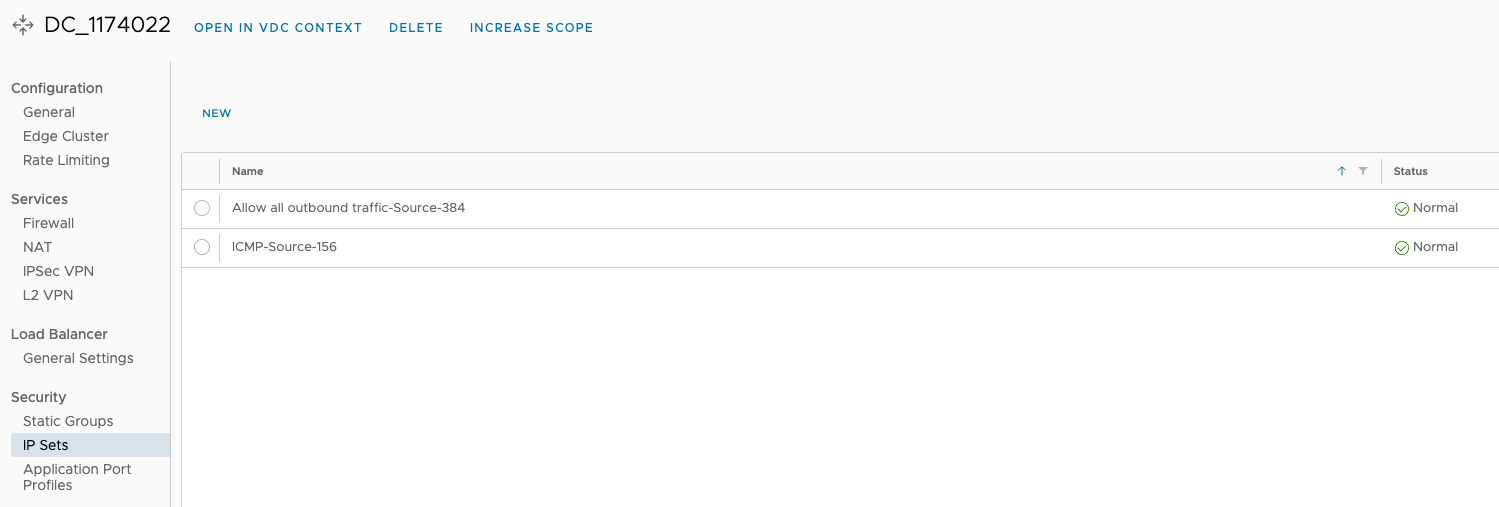

All source and destination networks or IP addresses will migrated to IP Sets for each Rule. The migration tools provided by VMware do not create very readable names, so you may wish to rename them. You can rename IP Sets as you wish.

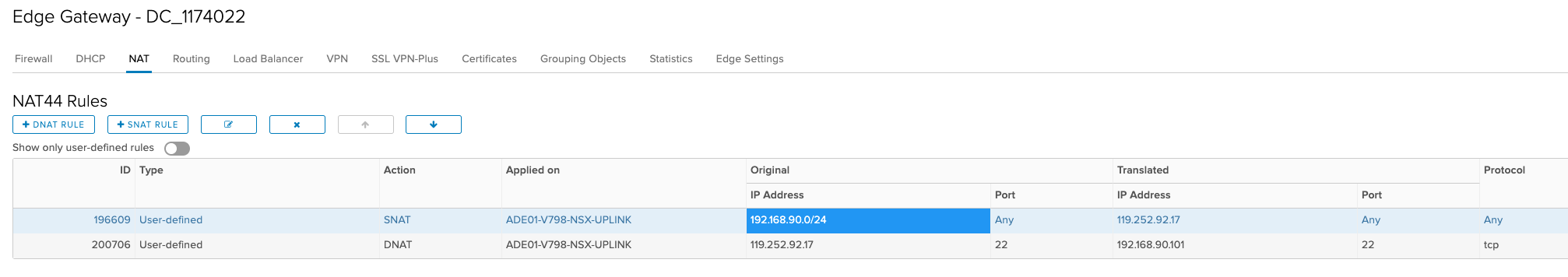

Before : NSX-V Edge NAT

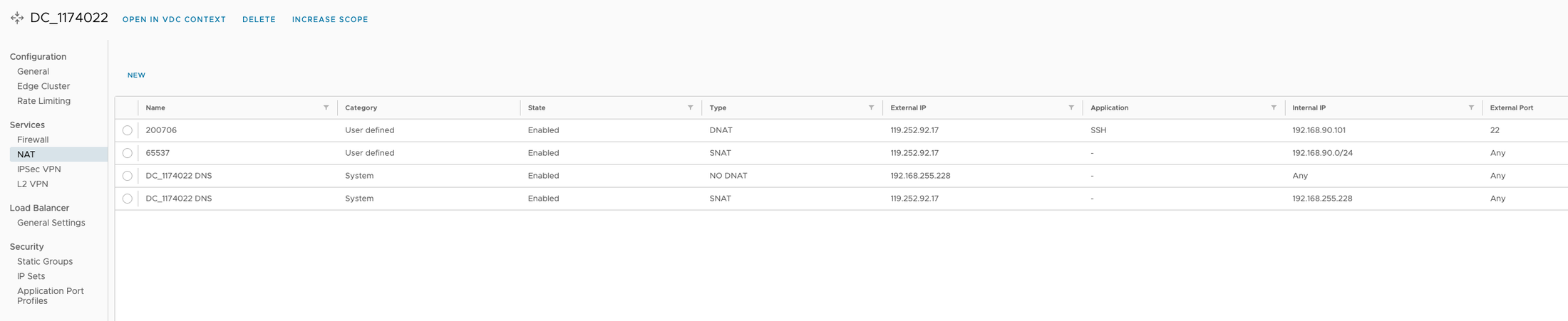

After : NSX-T Edge NAT
Before : NSX-V Shared Network
By default shared network will be accessible to all vDCs in your organization

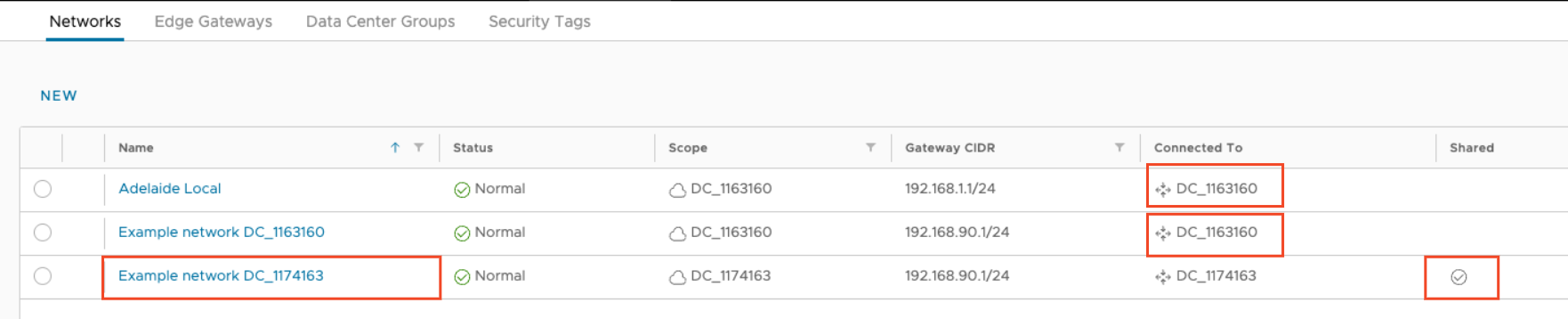

After : NSX-T Shared Network
Shared Network transformed into Data Center Group with two participant vDCs, Edge to which the network is connected will be add as Egress point

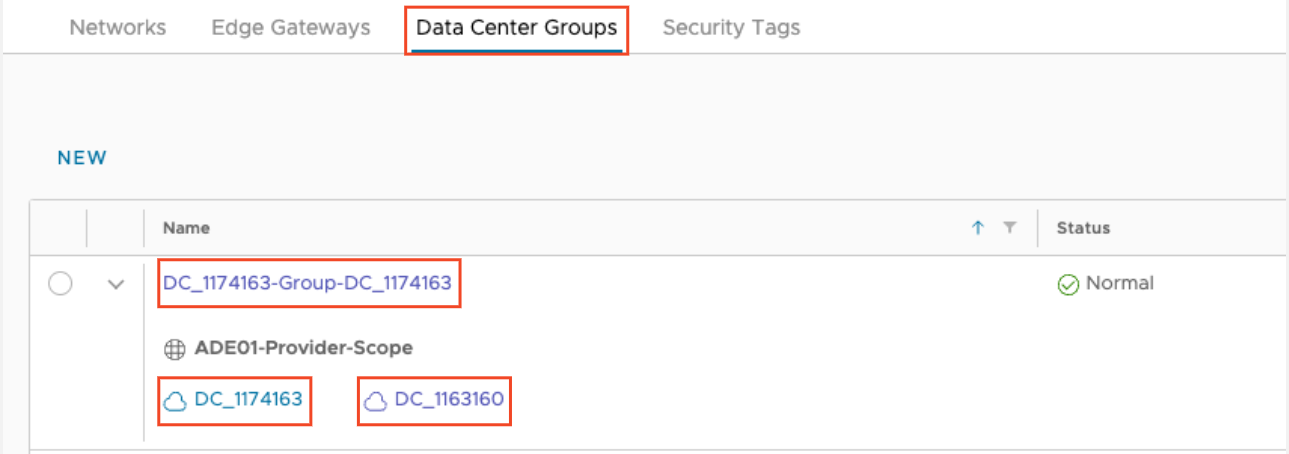

New Data Center Group

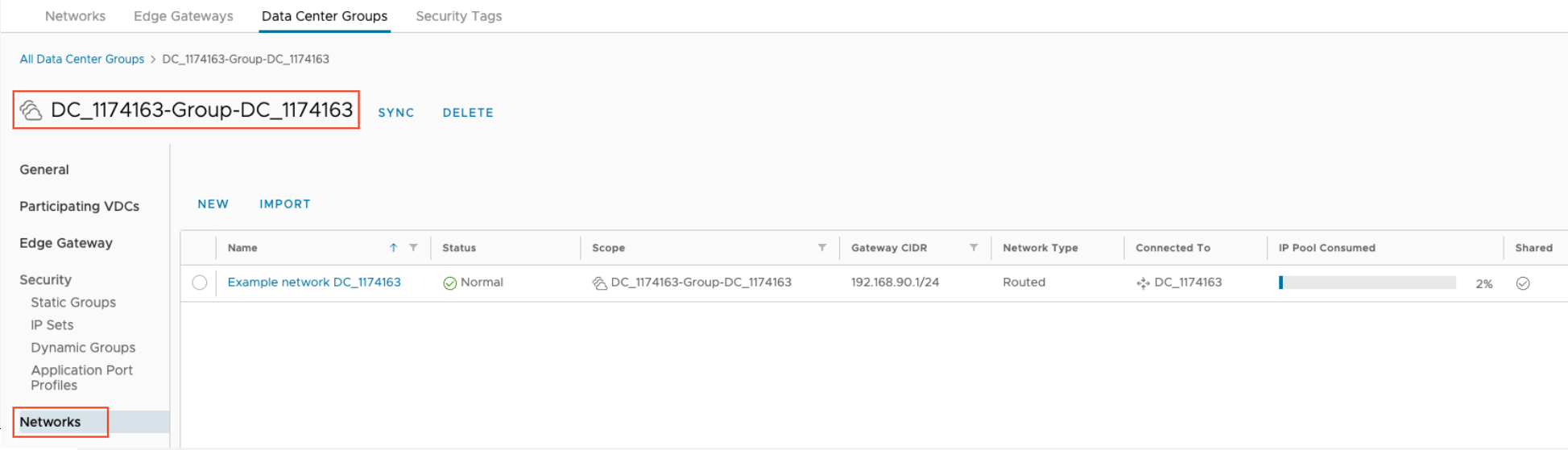

Network inside Data Center Group

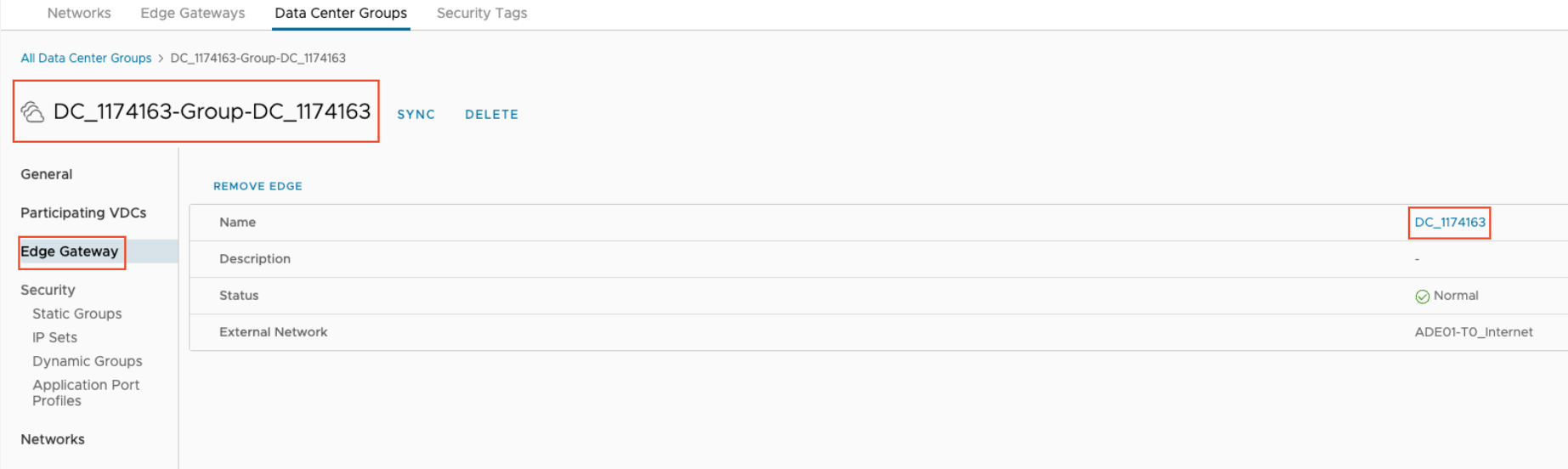

Edge inside Data Center Group
During the migration process, the DNS settings for Organization Network will be changed, if Primary DNS server = Gateway IP.
You must change from the old value 192.168.90.1 to the new value 192.168.255.228 inside the Operating system as soon as possible after the migration.

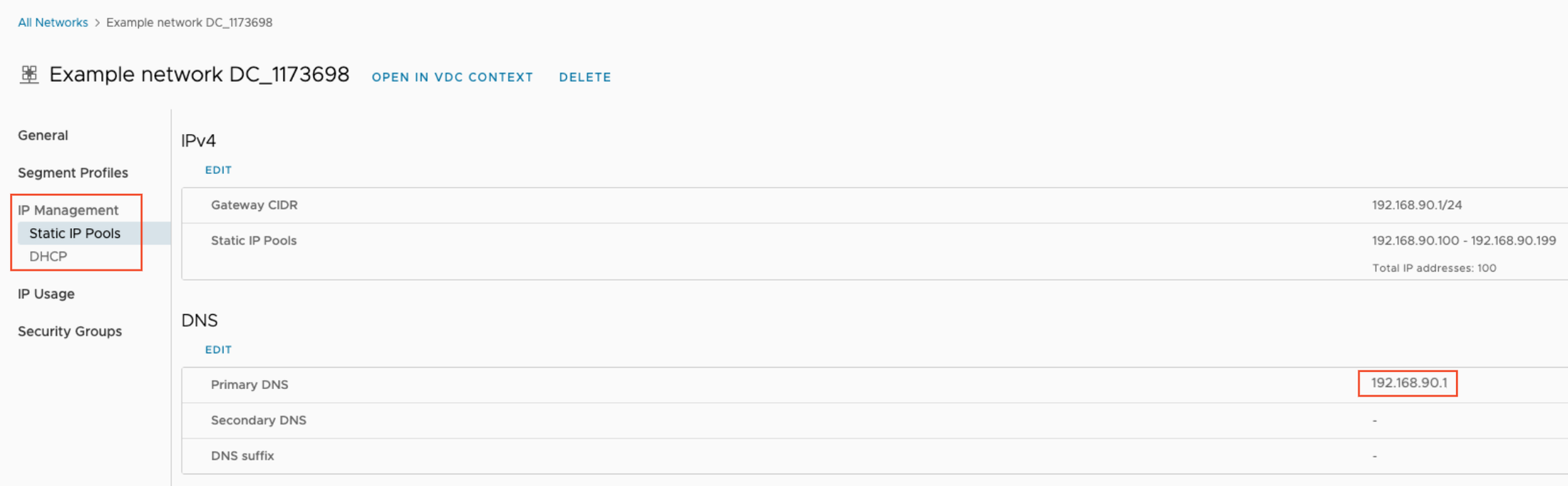

Before : NSX-V DNS

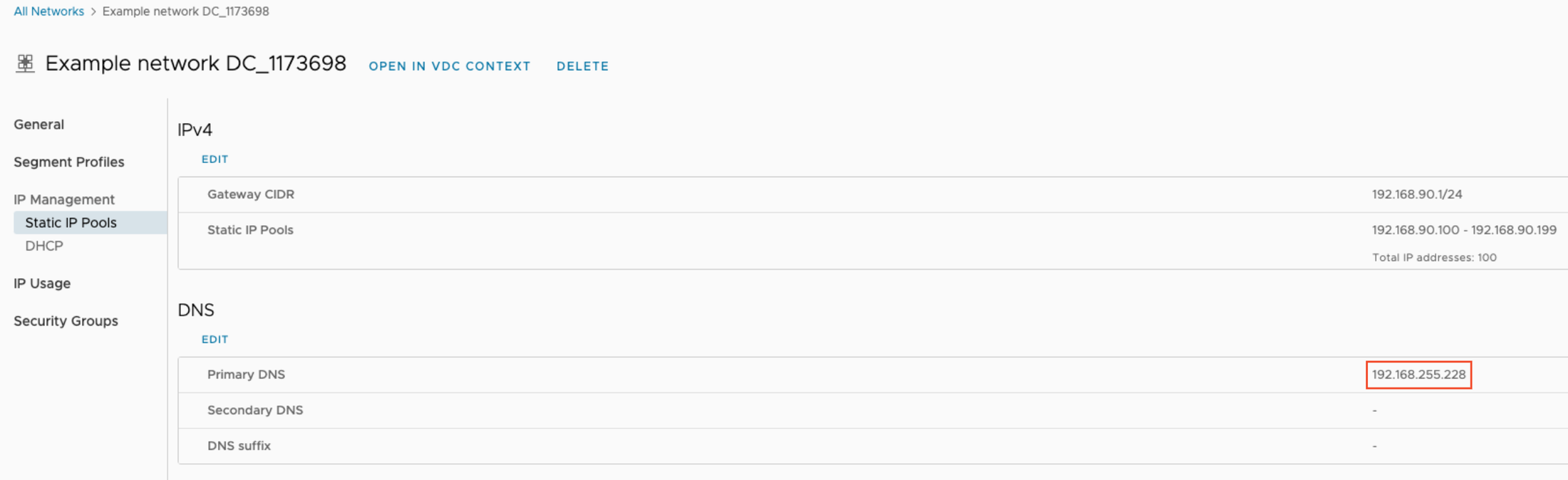

After : NSX-T DNS
